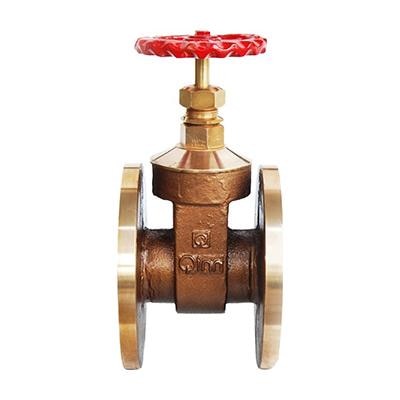

PRODUCT DETAILS SCREWED IN BONNET , INSIDE SCREW, NON RISING STEM, INTEGRAL SEAT & STURDY HAND WHEEL. END DETAILS FLANGED ENDS TO BS:10, TABLE ‘D’ WORKING SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC TESTING (HYD.) BODY TEST PRESSURE :- 300 psig. SEAT TEST PRESSURE :- 200 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL CAST IRON BS:1452,Gr220 4 STEM BRASS BS:2872,CZ114 5 GLAND NUT BRONZE BS:1400 LG2 6 GLAND BUSH BRONZE BS:1400 LG2 7 GLAND PACKING ASBESTOS —– 8 BONNET BRONZE BS:1400 LG2 9 WEDGE BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 11 STUFFING BOX BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE ∅B L+1.5 H T ∅D ∅W~ 15mm 15 64 102 6.5 95.3 55 20mm 20 76 115 6.5 101.6 60 25mm 25 86 127 8 114.3 75 32mm 32 89 140 8 120.7 85 40mm 40 106 162 9.5 133.4 100 50mm 50 114 188 9.5 152.4 110 65mm 65 138 220 11 165.1 127 80mm 80 143 249 12.7 184.2 127 100mm 100 179 320 15.8 216 160 125mm 120 230 375 20 254 200 150mm 147 230 425 22 280 210 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOT

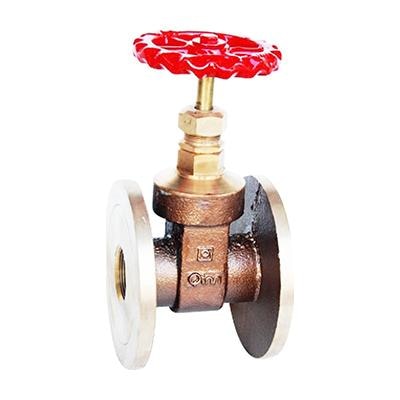

ISI MARKED TO IS:778, CL-I PRODUCT DETAILS SCREWED IN BONNET , INSIDE SCREW, NON-RISING STEM ,INTEGRAL SEATING BACK SEAT ARRANGMENT WITH STURDY HAND WHEEL OPERATING. END DETAILS FLANGE ENDS TO BS:4504 PN10/16 OR IS:778 WORKING SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC TESTING (HYD.) BODY TEST PRESSURE :- 1.5 Mpa SEAT TEST PRESSURE :- 1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL CAST IRON BS:1452,Gr200 4 STEM BRASS BS:2872,CZ114 5 GLAND NUT BRONZE BS:1400 LG2 6 GLAND BUSH BRONZE BS:1400 LG2 7 GLAND PACKING ASBESTOS —– 8 STUFFING BOX BRONZEL BS:1400 LG2 9 BONNET BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400,LG2 11 WEDGE BRONZE BS:1400,LG2 DIMENSIONS IN mm NOMINAL SIZE ∅B L+1.5 T ∅D+1.0 H~ ∅W~ 15mm 15 72 6.4 95 102 55 20mm 20 76 6.4 105 115 60 25mm 25 90 8.0 115 129 75 32mm 32 100 8.0 140 140 85 40mm 40 110 9.5 150 162 100 50mm 50 120 11.0 165 188 110 65mm 65 140 13.5 185 220 115 80mm 80 150 13.5 200 249 127 100mm 100 190 16.5 220 320 160 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

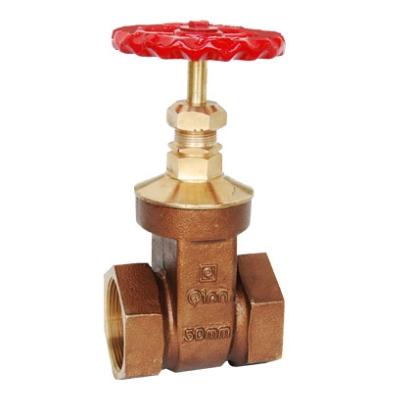

SI MARKED TO IS:778, CL-I PRODUCT DETAILS SCREWED IN BONNET , INSIDE SCREW, NON-RISING STEM, INTEGRAL SEATING, BACK SEAT ARRANGMENT WITH STURDY HAND WHEEL OPERATING. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21/IS:554 WORKING SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC TESTING (HYD.) BODY TEST PRESSURE:- 1.5 Mpa SEAT TEST PRESSURE:- 1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT M.S. BS:916 2 WASHER M.S. —– 3 HAND WHEEL CAST IRON BS:1452 Gr220 4 STEM BRASS BS:2872 CZ114 5 GLAND NUT BRONZE BS:1400 LG2 6 GLAND BUSH BRONZE BS:1400 LG2 7 GLAND PACKING ASBESTOS —– 8 STUFFING BOX BRONZE BS:1400 LG2 9 BONNET BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 11 WEDGE BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A ∅B L H~ ∅W~ 15mm 1/2” BSP 15 60 107 55 20mm 3/4” BSP 20 60 114 60 25mm 1” BSP 25 70 129 75 32mm 1.1/4” BSP 32 80 143 85 40mm 1.1/2” BSP 40 90 164 100 50mm 2” BSP 50 100 191 110 65mm 2.1/2” BSP 65 105 223 115 80mm 3” BSP 80 125 256 127 100mm 4” BSP 100 160 299 158 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS BOLTED BONNET,OUTSIDE SCREW & YOKE TYPE, RISING STEM, STRAIGHT INLET, RENEWABLE TRIMS, BACKSEAT ARRANGEMENT WITH HANDWHEEL OPERATED. END DETAILS FLANGED ENDS AS PER BS:10 TABLE ‘F’ WORKING PRESSURE SUITABLE MAX. BOP 150 psig.MAX.WORKING TESTING 300 psig. (Hyd.) MATERIALS OF CONSTRUCTION S NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452 Gr220 4 STEM S.S. AISI-410 5 BUSH S.S. AISI-410 6 GLAND C.I. BS:1452 Gr220 7 GLAND PACKING ASBESTOS … 8 BONNET C.I. BS:1452 Gr220 9 GASKET CAF … 10 DISC NUT S.S. AISI-410 11 SCREW S.S. AISI-410 12 DISC S.S. AISI-410 13 BODY SEAT RING S.S. AISI-410 14 BODY C.I. BS:1452 Gr220 15 STUD & NUT CARBON STEEL BS:916 16 T-HEAD BOLT & NUT CARBON STEEL BS:916 17 STOPPER BRONZE BS:1400 LG2 18 GASKET CAF … 19 CHECK DISC S.S. AISI-410 20 STRAIGHT INLET C.I. BS:1452 Gr220 DIMENSIONS IN mm NOMINAL SIZE ∅A ∅B L+1 T H1~ H2~ 25mm 25 122 100 13 220 155 32mm 32 134 105 16 240 185 40mm 40 140 110 16 260 190 50mm 50 165 125 20 280 195 65mm 65 184 145 20 310 240 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS SCREWED IN BONNET & INTEGRAL SEAT. CONFORMING TO IS:778, Class 1. END DETAILS SCREWED FEMALE ENDS(BSP) AS IS:554 WORKING SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C. TESTING (HYD.) BODY TEST PRESSURE :-1.5 Mpa SEAT TEST PRESSURE :-1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 60 39 20mm 3/4”BSP 70 47 25mm 1”BSP 80 55 32mm 1.1/4”BSP 95 55 40mm 1.1/2”BSP 110 66 50mm 2”BSP 125 79 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS SCREWED IN BONNET & INTEGRAL SEAT. CONFORMING TO IS:778, Class 1. END DETAILS SCREWED FEMALE ENDS(BSP) AS IS:554 WORKING SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C. TESTING (HYD.) BODY TEST PRESSURE :-1.5 Mpa SEAT TEST PRESSURE :-1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 60 39 20mm 3/4”BSP 70 47 25mm 1”BSP 80 55 32mm 1.1/4”BSP 95 55 40mm 1.1/2”BSP 110 66 50mm 2”BSP 125 79 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

T DETAILS BOLTED BONNET, RENEWABLE STAINLESS STEEL (AISI 410)TRIM. END DETAILS FLANGED ENDS AS PER BS4504, PART-1 TABLE 40/1 WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-40, CONFORMING TO BS:5160/DIN 2401. TESTING HYDRAULIC. BODY TESTED :- 76bar (1100psig. hyd.) SEAT TESTED :- 38bar ( 550 psig. hyd. ) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST STEEL ASTM A216 Gr.WCB 3 GASKET SPIRAL WOUND GASKET ASBESTOS FILLED AISI-304 4 DISC STAINLES STEEL AISI-410 5 BODY SEAT RING STAINLES STEEL AISI-410 6 BODY CAST STEEL ASTM A216 Gr.WCB DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L H~ 15mm 15 45 114 16 2 130 55 20mm 20 58 114 18 2 150 60 25mm 25 68 121 18 2 160 68 32mm 32 78 140 18 2 180 78 40mm 40 88 150 18 3 200 86 50mm 50 102 165 20 3 230 96 65mm 65 122 185 22 3 290 114 80mm 80 138 200 24 3 310 128 100mm 100 162 235 24 3 350 150 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED COVER, RENEWABLE STAINLESS STEEL TRIM. END DETAILS FLANGED TO DIN 2533 RF, PN16 FOR SIZE UP TO 150mm FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS:5153 TESTING HYDRAULIC. TEST PRESSURE:- 26Bar (377 psig. hyd.) For size up to 150mm TEST PRESSURE:- 16Bar ( 232 psig. hyd. ) For size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST IRON BS:1452 GR.220 3 GASKET C.A.F. … 4 DISC STAINLESS STEEL AISI-410 5 BODY SEAT RING STAINLESS STEEL AISI-410 6 BODY CAST IRON BS:1452 GR.220 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H~ 15mm 15 45 95 14 2 90 60 20mm 20 58 105 16 2 95 60 25mm 25 68 115 16 2 100 68 32mm 32 78 140 18 2 105 70 40mm 40 88 150 18 3 115 75 50mm 50 102 165 20 3 125 80 65mm 65 122 185 20 3 145 96 80mm 80 138 200 22 3 155 102 100mm 100 158 220 24 3 175 112 125mm 125 188 250 26 3 200 128 150mm 150 212 285 26 3 225 148 200mm 200 268 340 26 3 275 178 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

PRODUCT DETAILS BOLTED COVER, RENEWABLE STAINLESS STEEL(AISI 410)TRIM. END DETAILS FLANGED TO BS:4504,PN-16 UPTO 150mm OF VALVE FLANGED TO BS:4504,PN-10 ABOVE 150mm OF VALVE WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS:5153 TESTING HYDRAULIC. TEST PRESSURE :- 26Bar (377psig.) For size up to 150mm TEST PRESSURE :- 16Bar (232 psig.) For size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST IRON BS:1452 GR.220 3 GASKET C.A.F. … 4 DISC STAINLESS STEEL AISI-410 5 BODY SEAT RING STAINLESS STEEL AISI-410 6 BODY CAST IRON BS:1452 GR.220 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H~ 15mm 15 45 95 14 2 130 70 20mm 20 58 105 16 2 150 70 25mm 25 68 115 16 2 160 80 32mm 32 78 140 18 2 180 95 40mm 40 88 150 18 3 200 100 50mm 50 102 165 20 3 230 108 65mm 65 122 185 20 3 290 130 80mm 80 138 200 22 3 310 144 100mm 100 158 220 24 3 350 158 125mm 125 188 250 26 3 480 218 150mm 150 212 285 26 3 480 218 200mm 200 268 340 26 3 600 260 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
