PRODUCT DETAILS BOLTED BONNET,OUTSIDE SCREW & YOKE TYPE, RISING STEM, STRAIGHT INLET, RENEWABLE TRIMS, BACKSEAT ARRANGEMENT WITH HANDWHEEL OPERATED. END DETAILS FLANGED ENDS AS PER BS:10 TABLE ‘F’ WORKING PRESSURE SUITABLE MAX. BOP 150 psig.MAX.WORKING TESTING 300 psig. (Hyd.) MATERIALS OF CONSTRUCTION S NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452 Gr220 4 STEM S.S. AISI-410 5 BUSH S.S. AISI-410 6 GLAND C.I. BS:1452 Gr220 7 GLAND PACKING ASBESTOS … 8 BONNET C.I. BS:1452 Gr220 9 GASKET CAF … 10 DISC NUT S.S. AISI-410 11 SCREW S.S. AISI-410 12 DISC S.S. AISI-410 13 BODY SEAT RING S.S. AISI-410 14 BODY C.I. BS:1452 Gr220 15 STUD & NUT CARBON STEEL BS:916 16 T-HEAD BOLT & NUT CARBON STEEL BS:916 17 STOPPER BRONZE BS:1400 LG2 18 GASKET CAF … 19 CHECK DISC S.S. AISI-410 20 STRAIGHT INLET C.I. BS:1452 Gr220 DIMENSIONS IN mm NOMINAL SIZE ∅A ∅B L+1 T H1~ H2~ 25mm 25 122 100 13 220 155 32mm 32 134 105 16 240 185 40mm 40 140 110 16 260 190 50mm 50 165 125 20 280 195 65mm 65 184 145 20 310 240 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED COVER, RENEWABLE STAINLESS STEEL TRIM. END DETAILS FLANGED TO DIN 2533 RF, PN16 FOR SIZE UP TO 150mm FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS:5153 TESTING HYDRAULIC. TEST PRESSURE:- 26Bar (377 psig. hyd.) For size up to 150mm TEST PRESSURE:- 16Bar ( 232 psig. hyd. ) For size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST IRON BS:1452 GR.220 3 GASKET C.A.F. … 4 DISC STAINLESS STEEL AISI-410 5 BODY SEAT RING STAINLESS STEEL AISI-410 6 BODY CAST IRON BS:1452 GR.220 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H~ 15mm 15 45 95 14 2 90 60 20mm 20 58 105 16 2 95 60 25mm 25 68 115 16 2 100 68 32mm 32 78 140 18 2 105 70 40mm 40 88 150 18 3 115 75 50mm 50 102 165 20 3 125 80 65mm 65 122 185 20 3 145 96 80mm 80 138 200 22 3 155 102 100mm 100 158 220 24 3 175 112 125mm 125 188 250 26 3 200 128 150mm 150 212 285 26 3 225 148 200mm 200 268 340 26 3 275 178 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

PRODUCT DETAILS BOLTED COVER, RENEWABLE STAINLESS STEEL(AISI 410)TRIM. END DETAILS FLANGED TO BS:4504,PN-16 UPTO 150mm OF VALVE FLANGED TO BS:4504,PN-10 ABOVE 150mm OF VALVE WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS:5153 TESTING HYDRAULIC. TEST PRESSURE :- 26Bar (377psig.) For size up to 150mm TEST PRESSURE :- 16Bar (232 psig.) For size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST IRON BS:1452 GR.220 3 GASKET C.A.F. … 4 DISC STAINLESS STEEL AISI-410 5 BODY SEAT RING STAINLESS STEEL AISI-410 6 BODY CAST IRON BS:1452 GR.220 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H~ 15mm 15 45 95 14 2 130 70 20mm 20 58 105 16 2 150 70 25mm 25 68 115 16 2 160 80 32mm 32 78 140 18 2 180 95 40mm 40 88 150 18 3 200 100 50mm 50 102 165 20 3 230 108 65mm 65 122 185 20 3 290 130 80mm 80 138 200 22 3 310 144 100mm 100 158 220 24 3 350 158 125mm 125 188 250 26 3 480 218 150mm 150 212 285 26 3 480 218 200mm 200 268 340 26 3 600 260 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS HIGH LIFT, INTEGRAL SEAT TYPE. END DETAILS INLET :- SCREWED MALE BSP PARALLEL/TAPER OUTLET:- FEMALE BSP PARALLEL/TAPER TO BS:21 TESTING 300 Psig. HYDRAULIC. WORKING SUITABLE FOR STEAM LINE UPTO MAX. SET PRESSURE 150psig AND MAX. TEMP. 225° C. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 REGULATING RING BRONZE BS:1400 LG2 3 HEX. BOL T & NUT BRASS BS: 2874 CZ114 4 DISC BRONZE BS:1400 LG2 5 LEVER C.I BS:1452Gr.220 6 LOWER SPRING DISC BRONZE BS:1400 LG2 7 SPRING CARBON STEEL BS:1726,EN47 8 UPPER SPRING DISC BRONZE BS:1400 LG2 9 CHAMBER BRONZE BS:1400 LG2 10 ADJUSTING SCREW BRONZE BS:1400 LG2 11 CAP ALLUMINIUM —– 12 HINGE PIN STAINLESS STEEL AISI 410 13 STEM BRASS BS: 2874 CZ114 DIMENSIONS IN mm NOMINAL SIZE ∅A B~ C~ ∅D H~ 15 1/2” BSP 58 44 1/2” BSP 132 20 3/4” BSP 75 55 3/4” BSP 147 25 1” BSP 78 55 1” BSP 147 40 1.1/2” BSP 97 68 1.1/2” BSP 163 50 2” BSP 115 77 2” BSP 230 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS INVERTED BUCKET TYPE, VERTICAL INSTALLABLE, WITH SS-304 WORKING PARTS. END DETAILS SCREWED FEMALE ENDS BSP PARALLEL TO BS:21 TESTING 300 psig. (SHELL TEST) HYDRAULIC. WORKING PRESSURE MAXIMUM B.O.P. 10 Bar MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 PLUG BRONZE BS:1400 LG2 2 COVER CAST IRON BS:1452 Gr220 3 NUT & BOLT CARBON STEEL BS:916 4 VALVE SEAT S.S. AISI-304 5 BALL SEAT S.S. AISI-202 6 E-CLAMP S.S. AISI-304 7 BUCKET S.S. AISI-304 8 BODY CAST IRON BS:1452 Gr220 9 BUCKET RING CAST IRON BS:1452 Gr220 10 HOOK S.S. AISI-304 11 VALVE LEVER S.S. AISI-304 12 GASKET C.A.F. —– 13 BUCKET HOOK S.S. AISI-304 14 SYPHON PIPE MCI BS:10242 DIMENSIONS IN mm NOMINAL SIZE ∅B ∅A L+1.5 15mm 1/2” BSP 1/2” BSP 210 20mm 3/4” BSP 3/4” BSP 210 25mm 1” BSP 1” BSP 275 32mm 1.1/4” BSP 1.1/4” BSP 312 40mm 1.1/2” BSP 1.1/2” BSP 388 50mm 2” BSP 2” BSP 440 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE SS(AISI410) WORKING PARTS, HAND WHEEL OPERATED TO RIGHT ANGLED BODY END DETAILS FLANGED TO BS:4504,PN-16 UPTO 150mm OF VALVE FLANGED TO BS:4504,PN-10 ABOVE 150mm OF VALVE WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN16/10, CONFORMING TO BS:5152, MAX. WORKING TEMP. TESTING HYDRAULIC. TEST PRESSURE :- 26bar (377psig. hyd.) for size uoto 150mm TEST PRESSURE :- 16bar (232 psig. hyd.) for size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HAND WHEEL CAST IRON BS:1452 Gr.220 2 STEM STAINLESS STEEL AISI-410 3 BONNET CAST IRON BS:1452 Gr.220 4 GLAND CAST IRON BS:1452 Gr.220 5 GLAND PACKING ASBESTOS GRAPHITED —– 6 GASKET C.A.F. —– 7 SEAT NUT BRONZE BS:1400 LG2 8 SEAT STAINLESS STEEL AISI-410 9 BODY RING STAINLESS STEEL AISI-410 10 BODY CAST IRON BS:1452 Gr.220 11 NUT CARBON STEEL BS:916 12 WASHER CARBON STEEL —– 13 LOCKING SCREW CARBON STEEL BS:916 14 YOKE BUSH ALUMINUM BRONZE BS:1400 AB1C 15 STUDS & NUTS CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H ∅W~ 15mm 15 45 95 14 2 90 150 100 20mm 20 58 105 16 2 95 150 100 25mm 25 68 115 16 2 100 155 100 32mm 32 78 140 18 2 105 185 125 40mm 40 88 150 18 3 115 190 160 50mm 50 102 165 20 3 125 198 160 65mm 65 122 185 20 3 145 242 200 80mm 80 138 200 22 3 155 265 200 100mm 100 158 220 24 3 175 305 250 125mm 125 188 250 26 3 200 370 250 150mm 150 212 285 26 3 225 430 310 200mm 200 268 340 26 3 275 485 400 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTIC

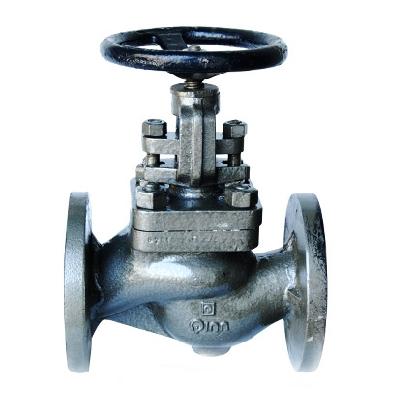

PRODUCT DETAILS BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE STAINLESS STEEL (AISI 410) TRIM, HAND WHEEL OPERATED. END DETAILS FLANGED TO BS:4504,PN-16 UPTO 150mm OF VALVE FLANGED TO BS:4504,PN-10 ABOVE 150mm OF VALVE WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS-5152 MAX. WORKING TEMP. 220º (428ºF) TESTING HYDRAULIC. TEST PRESSURE :- 26bar (377psig. hyd.) for size uoto 150mm TEST PRESSURE :- 16bar (232 psig. hyd.) for size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL CAST IRON BS:1452 Gr.220 4 YOKE BUSH ALUMINIUM BRONZE BS:1400 AB1C 5 LOCKING SCREW CARBON STEEL BS: 916 6 GLAND CAST IRON BS:1452 Gr.220 7 PACKING ASBESTOS GRAPHITED —– 8 BONNET CAST IRON BS:1452 Gr.220 9 DISC NUT BRONZE BS:1400 LG2 10 DISC STAINLESS STEEL AISI-410 11 BODY CAST IRON BS:1452 Gr.220 12 STEM STAINLESS STEEL AISI-410 13 STUD & NUTS CARBON STEEL BS:916 14 GASKET C.A.F —– 15 BODY SEAT RING STAINLESS STEEL AISI-410 NOMINAL SIZE ∅D ∅E ∅F T B L* H ∅W~ 15mm 15 45 95 14 2 130 162 100 20mm 20 58 105 16 2 150 165 100 25mm 25 68 115 16 2 160 175 100 32mm 32 78 140 18 2 180 190 125 40mm 40 88 150 18 3 200 240 160 50mm 50 102 165 20 3 230 255 160 65mm 65 122 185 20 3 290 285 200 80mm 80 138 200 22 3 310 310 200 100mm 100 158 220 24 3 350 350 250 125mm 125 188 250 26 3 400 425 250 150mm 150 212 285 26 3 480 485 310 200mm 200 268 340 26 3 600 590 400 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

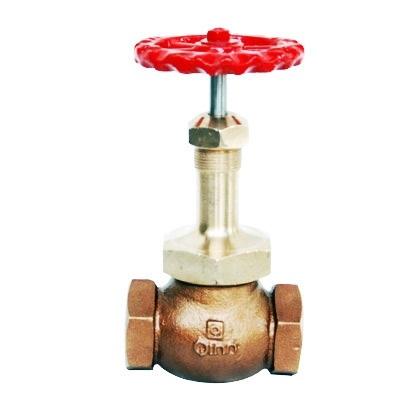

PRODUCT DETAILS SCREWED ON BONNET, INSIDE SCREW, INTEGRAL SEAT WITH TEFLON SEAT FACING AND STURDY HAND WHEEL OPERATED. END DETAILS SCREWED BSP PARALLEL TO BS:21 TESTING HYDRAULIC. BODY TEST PRESSURE :- 500 Psig. SEAT TEST PRESSURE :- 350 Psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 BONNET BRONZE BS:1400 LG2 3 GLAND NUT BRONZE BS:1400 LG2 4 GLAND BRONZE BS:1400 LG2 5 DISC NUT & WASHER BRASS BS:2874 CZ-114 6 SPINDLE BRASS/S.S. BS:2874 CZ114/AISI-410 7 SEAT S.S./BRONZE AISI-410/BS:1400 LG2 8 SEAT FACING TEFLON PTFE 9 GLAND PACKING ASBESTOS —– 10 HAND WHEEL CAST IRON BS:1452 Gr.220 11 WASHER CARBON STEEL —– 12 NUT CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅D L(+1.5) H (APX) W (APX) 15mm 1/2” BSP 70 133 65 20mm 3/4” BSP 85 149 76 25mm 1” BSP 103 164 84 32mm 1.1/4” BSP 110 179 97 40mm 1.1/2” BSP 120 205 117 50mm 2” BSP 148 214 130 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NO

PRODUCT DETAILS BOLTED COVER WITH NON MAGENTIC STAINLESS STEEL PERFORATED SHEET SCREEN. END DETAILS FLANGED ENDS AS PER BS:10 TABLE ‘F’ TESTING 370 psig (hyd.) WORKING PRESSURE SUITABLE FOR STEAM UP TO 185 psig MAX. WORKING TEMP 220 C MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY CAST IRON BS:1452 Gr220 2 SCREEN SS AISI-304 3 GASKET CAF STEAM JOINTING 4 COVER CAST IRON BS:1452 Gr220 5 STUD & NUT CARBON STEEL BS:916 6 GASKET CAF STEAM JOINTING 7 DRAIN PLUG CAST IRON BS:1452 Gr220 DIMENSIONS IN mm NOMINAL SIZE ∅A ∅D T L(±1.5) H~ 25MM 25 121 12.7 162 115 32MM 32 133 15.8 185 122 40MM 40 140 15.8 206 145 50MM 50 165 19 210 160 65MM 65 185 19 248 185 80MM 80 203 19 270 258 100MM 100 229 22 381 306 125MM 125 280 25 416 390 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
