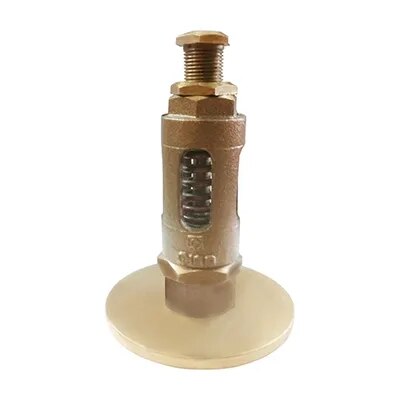

Q-12 A – Qinn BRONZE SPRING Relief VALVE ( Straight Type )
Description
PRODUCT DETAILS
SPRING LOADED INTEGRAL SEATING & OPEN DISCHARGE TYPE.
END DETAILS
FLANGED INLET TO BS:4504 (PN-10/16)
TESTING
20 Psig. TO 150 Psig. HYDRAULIC.
SET PRESSURE
50 Psig.
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BODY BRONZE BS:1400 LG2
2 SEAT BRONZE BS:1400 LG2
3 CHAMBER BRONZE BS:1400 LG2
4 STEM BRONZE BS:1400 LG2
5 SPRING SPRING STEEL EN-47
6 SPRING DISC BRONZE BS:1400 LG2
7 CHECK NUT BRONZE BS:1400 LG2
8 ADJUSTING SCREW BRONZE BS:1400 LG2
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BODY BRONZE BS:1400 LG2
2 SEAT BRONZE BS:1400 LG2
3 CHAMBER BRONZE BS:1400 LG2
4 STEM BRONZE BS:1400 LG2
5 SPRING SPRING STEEL EN-47
6 SPRING DISC BRONZE BS:1400 LG2
7 CHECK NUT BRONZE BS:1400 LG2
8 ADJUSTING SCREW BRONZE BS:1400 LG2
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
