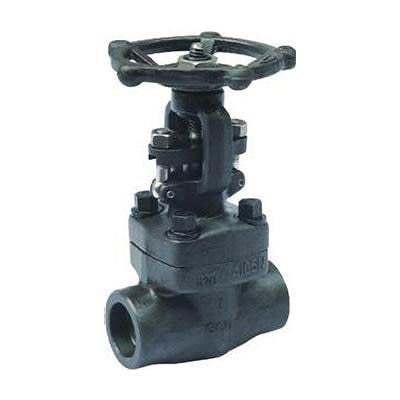

PRODUCT DETAILS REDUCED BORE, BOLTED BONNET,OUTSIDE SCREW & YOKE TYPE , RISING STEM WITH BACKSEAT ARRANGMENT ,STAINLESS STEEL(AISI 410) TRIM,HAND WHEEL OPERATED,CONFORMING TO BS:5352,CLASS-800 END DETAILS SCREWED FEMALE NPT THREADS TO ANSI B1.20.1 OR SOCKET WELDED ENDS AS PER ASME B16.11 TESTING (HYD.) BODY 207 BAR 3000 psig.HYD. BACK SEAT & SEAT 152 BAR 2200 psig. HYD & 6.9 BAR (100 psig. ) AIR. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 SLEEVE NUT CARBON STEEL BS: 916 2 WASHER CARBON STEEL —– 3 HAND WHEEL C.I BS: 1452 Gr.200 4 YOKE SLEEVE ALUMINUM BRONZE BS: 1400 AB2C 5 SPINDLE S.S. AISI-410 6 EYE BOLTS FORGED CARBON STEEL ASTM A105 7 NUT FOR GLAND CARBON STEEL (HIGH TENSILE) BS: 916 8 GLAND FLANGED FORGED CARBON STEEL ASTM A105 9 GLAND BUSH S.S AISI-410 10 GLAND PACKING GRAPHITED ASBESTOS —– 11 SCREW CARBON STEEL BS: 916 12 WASHER CARBON STEEL —– 13 HEX. BOLT ALLOY STEEL ASTM A194-Gr2H/EN8 14 BODY FORGED CARBON STEEL ASTM A105 15 BONNET FORGED CARBON STEEL ASTM A105 16 GASKET A.SPIRAL WOUND S.S.FILLED AISI-304 17 WEDGE S.S. AISI-410 18 SEAT RING S.S. AISI-410 DIMENSIONS IN mm NOMINAL SIZE A L W~ H~ 15mm 1/2” NPT/SW 80 76 135 20mm 3/4” NPT/SW 88 76 145 25mm 1” NPT/SW 100 86 170 40mm 1.1/2” NPT/SW 147 120 210 50mm 2” NPT/SW 171 120 240 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 OR NPT TO ANSI B1.20.1 TESTING(HYD.) HYDRAULIC. BODY TEST PRESSURE :-710 psig SEAT TEST PRESSURE:-300psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 LEVER SS AISI 316 2 NUT SS AISI 316 3 GLAND NUT SS AISI 316 4 BODY SS ASTM 351, CF8M 5 BALL SS AISI 316 6 SEAT TEFLON PTFE 7 SLEEVE PVC ———– 8 GLAND PACKING TEFLON PTFE 9 STEM SEAL TEFLON PTFE 10 STEM SS AISI 316 11 CONNECTOR SS ASTM 351, CF8M 12 CONNECTOR SEAL TEFLON PTFE DIMENSIONS IN mm NOMINAL SIZE ∅B L H D 15MM 1/2″BSP 60 54 100 20MM 3/4″ BSP 64 58 125 25MM 1″ BSP 80 60 125 32MM 1-1/4″BSP — — — 40MM 1-1/2″BBSP 95 90 165 50MM 2″BSP 112 96 190 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 OR NPT TO ANSI B1.20.1 TESTING(HYD.) HYDRAULIC. BODY TEST PRESSURE :- 710 psig SEAT TEST PRESSURE:-300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 LEVER SS AISI 304 2 NUT SS AISI 3048 3 GLAND NUT SS AISI 304 4 BODY SS ASTM-351 CF8 5 BALL SS AISI 304, CF8 6 SEAT TEFLON PTFE 7 SLEEVE PVC ——- 8 GLAND PACKING TEFLON PTFE 9 STEM SEAL TEFLON PTFE 10 STEM SS AISI 304 11 CONNECTOR SS ASTM-351 CF8 12 CONNECTOR SEAL TEFLON PTFE DIMENSIONS IN mm NOMINAL SIZE ∅B L H D 15MM 1/2″BSP 60 54 100 20MM 3/4″ BSP 64 58 125 25MM 1″ BSP 80 60 125 32MM 1-1/4″BSP — — — 40MM 1-1/2″BBSP 95 90 165 50MM 2″BSP 112 96 190 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE THREE PIECE DESIGN WITH S.S BALL & STEM, TEFLON SEAT , BLOW OFF PROOF STEM,LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘F’/E/D OR ANSI CLASS-150 OR BS:4504 PN10/16 TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE CARBON STEEL … 2 TOP NUT CARBON STEEL BS:916 3 GLAND NUT CARBON STEEL BS:916 4 GLAND PACKING TEFLON PTFE 5 STEM S.S AISI-410 6 STEM SEAL TEFLON PTFE 7 SEATS TEFLON PTFE 8 BALL S.S. —— 9 CONNECTOR C.I. BS:1452 GR220 10 SEALINGS RUBBER NITRILE 11 BODY C.I.. BS:1452 GR220 12 NUT/ STUD CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B L H~ ∅F ∅G T D~ 15mm 14 128 80 89 35 11.2 110 20mm 17 130 80 98.5 43 11.2 110 25mm 23.5 140 85 108 51 11.2 132 32mm 30 165 110 117.5 62.5 12.7 152 40mm 37 165 115 127 73 14.2 170 50mm 49 203 125 152.5 92.5 15.8 210 65mm 63 223 145 178 105 17.5 250 80mm 78 241 180 190.5 127 19.0 327 100mm 98 310 225 229 157 24.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PPRODUCT DETAILS BOLTED BONNET, REDUCED BORE , SS (AISI 410) TRIM, CONFORMING TO BS 5352 CLASS 800 END DETAILS SCREWED FEMALE NPT THREADS TO ANSI B1.20.1 OR SOCKET WELDED ENDS AS PER ASME B 16.11 TESTING HYDRAULIC. BODY TESTED:- 207 bar (3000 psig.) SEAT TESTED :- 152 bar (2200 psig.) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HEX. BOLT ALLOY STEEL ASTM A219 Gr.2H/EN8 2 BONNET FORGED CARBON STEEL ASTM A-105 3 GASKET SPIRAL WOUND ASBESTOS FILLED S.S (304) 4 BODY SEAT RING S.S. AISI-410 5 SEAT S.S. AISI-410 6 BODY FORGED CARBON STEEL ASTM-A105 DIMENSIONS IN mm NOMINAL SIZE A L H~ 15mm 1/2″ NPT/SW 90 56 20mm 3/4″ NPT/SW 95 60 25mm 1″ NPT/SW 107 70 40MM 1.1/2″ NPT/SW 130 100 50MM 2″ NPT/SW 145 110 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PPRODUCT DETAILS BOLTED BONNET, REDUCED BORE , SS (AISI 410) TRIM, CONFORMING TO BS 5352 CLASS 800 END DETAILS SCREWED FEMALE NPT THREADS TO ANSI B1.20.1 OR SOCKET WELDED ENDS AS PER ASME B 16.11 TESTING HYDRAULIC. BODY TESTED:- 207 bar (3000 psig.) SEAT TESTED :- 152 bar (2200 psig.) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HEX. BOLT ALLOY STEEL ASTM A219 Gr.2H/EN8 2 BONNET FORGED CARBON STEEL ASTM A-105 3 GASKET SPIRAL WOUND ASBESTOS FILLED S.S (304) 4 BODY SEAT RING S.S. AISI-410 5 SEAT S.S. AISI-410 6 BODY FORGED CARBON STEEL ASTM-A105 DIMENSIONS IN mm NOMINAL SIZE A L H~ 15mm 1/2″ NPT/SW 90 56 20mm 3/4″ NPT/SW 95 60 25mm 1″ NPT/SW 107 70 40MM 1.1/2″ NPT/SW 130 100 50MM 2″ NPT/SW 145 110 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

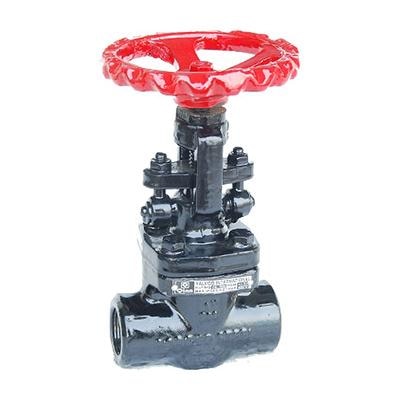

PRODUCT DETAILS REDUCED BORE ,BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE ,RISING STEM WITH BACKSEAT ARRANGMENT,STAINLESS STEEL (AISI 410) TRIM, HAND WHEEL OPERATED, CONFORMING TO BS:5352 CLASS 800 END DETAILS SCREWED FEMALE NPT THREADS TO ANSI B1.20.1 OR SOCKET WELDED ENDS AS PER ASME B 16.11 WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL CONFORMNG TO BS-5160/DIN2401 TESTING HYDRAULIC. BODY – 207 BAR (3000 psig) SEAT & BACK SEAT : – 152 BAR (2200 psig ) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT FOR HANDWHEEL CARBON STEEL BS:916 2 NAME PLATE ALUMINIUM —– 3 HAND WHEEL CAST IRON BS: 1452 Gr200 4 SPINDLE S.S. AISI-410 5 YOKE BUSH ALLUMINIUM BRONZE BS:1400 AB2C 6 YOKE BUSH LOCKING SCREW CARBON STEEL BS:916 (HIGH TENSILE) 7 EYE BOLTS FORGED CARBON STEEL ASTM A105 8 NUTS FOR EYE BOLTS CARBON STEEL BS:916(HIGH TENSILE) 9 GLAND FLANGED FORGED CARBON STEEL ASTM A105 10 GLAND BUSH S.S. AISI-410 11 GLAND PACKING GRAPHITED ASBESTOS —– 12 WASHER CARBON STEEL —– 13 SCREW CARBON STEEL BS: 916(HIGH TENSILE) 14 HEX. BOLT ALLOY STEEL ASTM A194 Gr.2H/EN8 15 GASKET SPIRAL WOULD S.S. GASKET AISI-304 ASBESTOS FILLED 16 BONNET FORGED CARBON STEEL ASTM A105 17 BODY FORGED CARBON STEEL ASTM A105 18 DISC S.S. AISI-410 19 BODY SEAT RING S.S. AISI-410 DIMENSIONS IN mm NOMINAL SIZE A L+1.5 H~ W~ 15mm 1/2” NPT/SW 90 155 76 20mm 3/4” NPT/SW 95 165 76 25mm 1” NPT/SW 107 175 86 40mm 1.1/2” NPT/SW 130 250 152 50mm 2” NPT/SW 145 225 152 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
