Q-98, 99 – Qinn CAST IRON DUAL PLATE CHECK VALVE

PRODUCT DETAILS

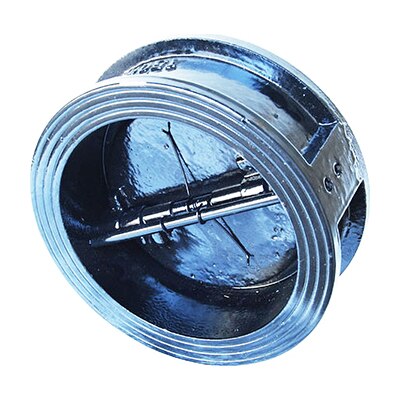

FLAP TYPE DOUBLE DISC , SPRING LOADED SWING TYPE CHECK VALVE

BODY SEAT FACING

NITRILE MOULDED LINER

DISC SEAT FACING

S.S./ SGI INTEGRAL FACE

END DETAILS

SUITABLE FOR INSERTION BETWEEN CLASS-150,BS-10 TABLE D/E , BS:4504,PN:10/16 FLANGES

PRESSURE RATING

PN-16 ( HYDRAULIC)

TESTING (HYD.)

BODY – 500 psig.

SEAT – 250 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS:1452 Gr.220

2 DISC S.S./ S.G.I. AISI 304 / BS:2789

3 SEAT RING RUBBER NITRILE

4 SPRING S.S AISI 304

5 HINGE PIN S.S AISI 304

6 STOP PIN S.S AISI 304

7 BEARING TEFLON P.T.F.E.

8 PLUG/GRUB SCREW CARBON STEEL BS: 916

9 NAME PLATE ALUMINIUM …

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
