Check Valves by Q-76 – Qinn CAST IRON ANGLE CHECK VALVEED IN BONNET, RENEWABLE- BRONZE SEAT & RING, SOFT SEATING AND SUITABLE FOR HIGH PRESSURE IN PETROL INDUSTRY. END DETAILS SCREWED BSP FEMALE AS BS:21 TESTING (HYD.) HYDRAULIC BODY TESTED:- 500 psig. SEAT TESTED:- 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS style=”color:#c41e02;”SPECIFICATIONS 1 BONNET CAST IRON BS:1452 Gr.220 2 GASKET C.A.F. … 3 BODY CAST IRON BS:1452 Gr.220 4 SEAT BRONZE BS:1400 LG2 5 SEAT FACING RUBBER NITRILE 6 BODY RING BRONZE BS:1400 LG2 7 SPLIT PIN BRASS BS:2872 CZ114 8 WASHER ALLUMINIUM … 9 NUT BRASS BS:2872 CZ114 DIMENSIONS IN mm NOMINAL SIZE ∅ A B~ C~ 40mm 1/2”BSP 78 76 70 50mm 2”BSP 80 88 76 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE. Related products Q-98, 99 - Qinn CAST IRON DUAL PLATE CHECK VALVE Q-98, 99 – Qinn CAST IRON DUAL PLATE CHECK VALVE Q-203 - Qinn CAST IRON HORIZONTAL LIFT CHECK VALVE pn-16/10 Q-203 – Qinn CAST IRON HORIZONTAL LIFT CHECK VALVE pn-16/10 Q-54 - Qinn BRONZE HORIZONTAL LIFT CHECK VALVE Q-54 – Qinn BRONZE HORIZONTAL LIFT CH

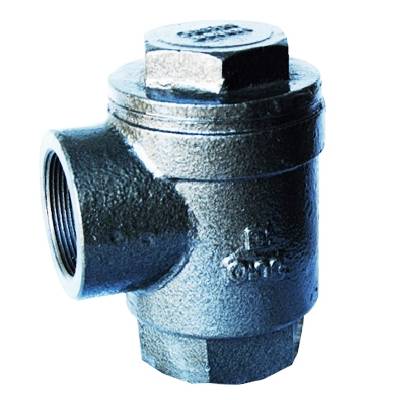

Q-76 – Qinn CAST IRON ANGLE CHECK VALVE
