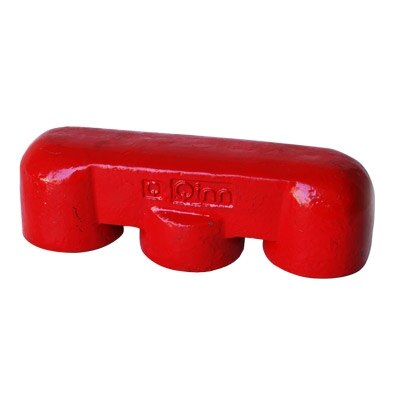

Q-84 – Qinn CAST IRON VENT HOOD WITH BRASS MESH
In stock
Description
PRODUCT DETAILS
PERFORATED BRASS SCREEN FITTED WITH SS-202 RETAINER
END DETAILS
FEMALE END BSP TO BS:21
WORKING
SUITABLE FOR ALL TYPES OF VENTILATION IN TANKS & SUPPLY LINES FOR LIQUID MEDIA.
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BODY C.I.. BS:1452 Gr.220
2 SCREEN BRASS BS:2872 CZ114
3 RETAINER S.S. AISI-202
DIMENSIONS IN mm
NOMINAL SIZE A B C D
40mm 1/2” BSP 152 68 42
50mm 2” BSP 175 76 52
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
