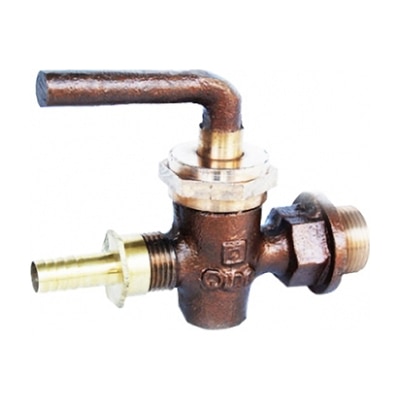

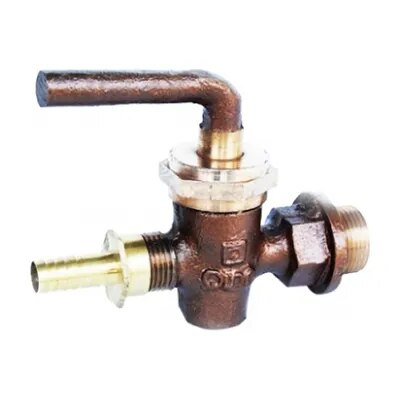

Q-40 – Qinn BRONZE PRESSURE GAUGE VALVE (ASBESTOS PACKED)

PRODUCT DETAILS

BRONZE GLAND PLUG TYPE WITH TAIL PIPE NIPPLE ON OUTLET

END DETAILS

INLET:- MALE ENDS BSP TO BS:21

OUTLET:- NOZZLE WITH MALE SERRATED END

FOR FLEXIBLE PIPE

TESTING

HYDRAULIC

BODY TEST PRESSURE :- 300 Psig.

SEAT TEST PRESSURE :- 200 Psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY BRONZE BS:1400 LG 2

2 GLAND PACKING ASBESTOS —–

3 GLAND NUT BRONZE BS:1400 LG2

4 NOZZLE BRASS BS:2872 CZ114

5 GLAND BUSH BRONZE BS:1400 LG 2

6 PLUG BRONZE BS:1400 LG 2

7 GASKET CAF —–

DIMENSIONS IN mm

NOMINAL SIZE ∅A ∅B L H (APX)

15mm 1/2” BSP 3/8″BSP 102 60

20mm 3/4” BSP 1/2″BSP 118 68

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
