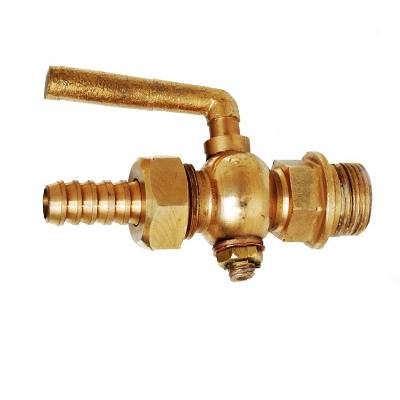

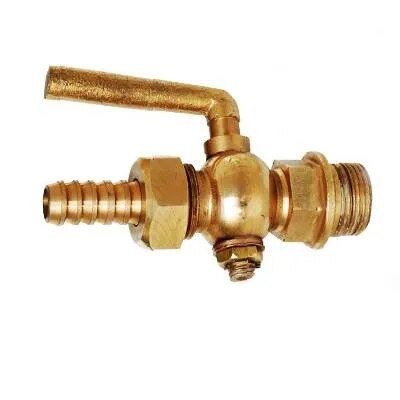

Q-39 – Qinn BRONZE DRAIN VALVE

PRODUCT DETAILS

STANDARD PATTERN WITH STRAIGHT NOSE ON THE OUTLET END.

END DETAILS

MALE BSP TO BS:21

TESTING

HYDRAULIC

BODY TEST PRESSURE :- 300 Psig.

SEAT TEST PRESSURE :- 300 Psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY BRONZE BS:1400 LG 2

2 PLUG BRONZE BS:1400 LG 2

3 PLAIN WASHER BRONZE BS:1400 LG2

4 SPRING WASHER SPRING STEEL BS:1726 EN:47

5 NUT BRASS BS:2874 CZ:114

6 SPLIT PIN BRASS BS:2874 CZ:114

7 NOZZEL BRASS BS:2874 CZ:114

DIMENSIONS IN mm

NOMINAL SIZE ∅A L(+1.5) H (APX)

8mm 1/4” BSP 81 40

10mm 3/8” BSP 81 45

15mm 1/2” BSP 89 48

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
