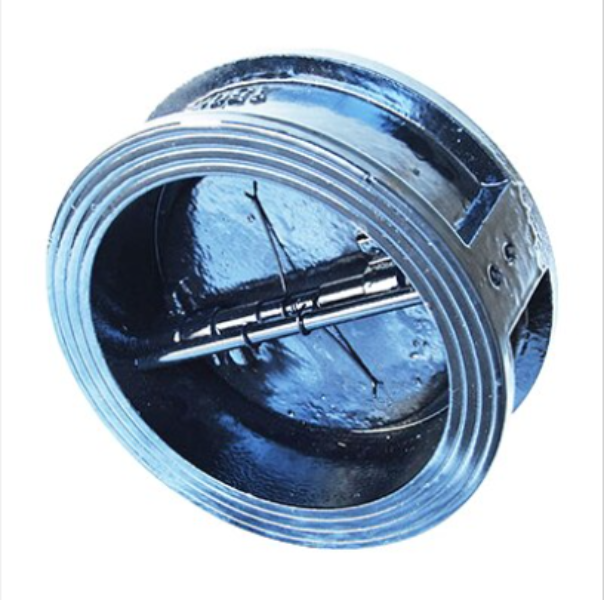

Non-return valves are available in several configurations, and installation space can become a major consideration in industrial piping systems. A dual plate non return valve uses two spring-assisted or configured plates within a compact body to restrict reverse flow.
Its characteristics can make it useful for selected pumping, utility, water, HVAC, and process applications, provided the design matches the system.
Why Consider a Dual Plate Design
Traditional swing-type check valves can require more body length and use a single hinged disc.
A dual plate design divides the closure element into two plates. Depending on its construction, this can provide a compact arrangement between flanges and different closing characteristics.
For engineering projects where valve weight and installation length matter, this is one reason the design is considered.
Compare More Than Face-to-Face Dimensions
Compactness alone should not determine the purchase.
Industrial buyers should compare:
- Pressure rating
- Body material
- Disc or plate material
- Spring material
- Seat construction
- Media compatibility
- Operating temperature
- Flow characteristics
- Flange compatibility
- Installation orientation
The valve should also be assessed against the hydraulic behaviour of the system.
Consider Pumping Conditions
Non-return valves are frequently installed near pumps to prevent undesirable reverse flow when pumping conditions change.
However, valve selection should account for flow velocity and system dynamics. Rapid flow changes can create challenging transient conditions.
An appropriately selected non-return valve can be one element of good system design, but it should not be expected to correct every water-hammer or transient-pressure problem.
Engineering evaluation may be required for systems where pressure surges are a concern.
Check the Installation Arrangement
Wafer-style dual plate valves are generally positioned between compatible pipeline flanges.
Correct centring, flange compatibility, flow direction, gasket arrangement, bolt installation, and pipeline alignment are important.
Sufficient straight piping or other installation requirements should be considered according to the specific system and manufacturer's guidance.
For industrial facilities in Mumbai and Maharashtra, compact valve construction can be useful where equipment layouts leave limited space between pumps, manifolds, and other piping components.
What to Send With a Purchase Enquiry
Instead of asking only for a particular diameter, provide the supplier with:
- Pipeline size
- Medium
- Flow conditions where available
- Pressure and temperature
- Required material
- Flange standard and pressure class
- Installation orientation
- Quantity
- Project specifications
When these details are provided to Navkar Enterprises - Texas Valves, the discussion can focus on whether the offered dual plate non return valve aligns with the actual piping duty.
The best reason to select a dual plate design is not simply that it is compact. It should offer the construction, materials, pressure capability, closing behaviour, and installation configuration required by the system.
