TEXAS 🟥 BUTTERFLY HANDLE BALL VALVES MALE FEMALE ENDS

ANTICA BRASS BALL VALVES AVAILABLE IN LONG HANDLE, BUTTERFLY HANDLE,MINI BALL VALVES...

ALUMINIUM BUTTERFLY VALVES LOWEST RATES IN MUMBAI AVAILABLE SIZES FROM 40 MM TO 200 MM...

TEXAS 🟥 FORGED BRASS BUTTERFLY HANDLE BALL VALVE THREADED

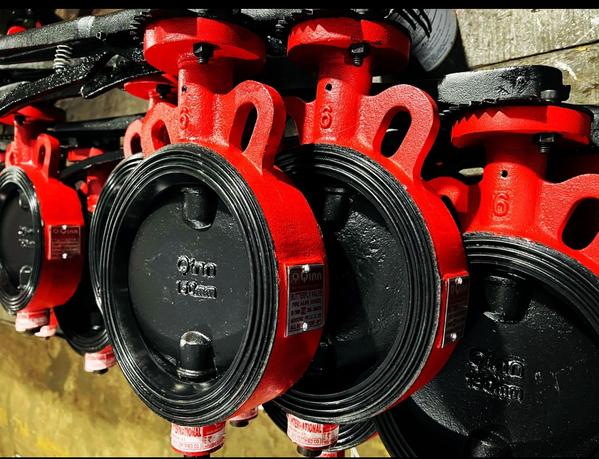

CAST IRON BUTTERFLY VALVE PN 16 ISI QINN LEVER OPERATED

LEVER OPERATED SIZE 40 MM TO 300 MM PN 16 ISI TEMPRATURE 50 DEGREE NITRILE / EPDM RUBBER CI DISC & SS DISC

Qinn make ci butterfly valves... Widely installed in all major projects throughout India...

PRODUCT DETAILS TWO PIECE DESIGN, FULL BORE, TEFLON SEATS & SEAL, S.S.BALL & STEM AND BLOW OFF PROOF STEM WITH LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘D’ TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE M.S —– 2 STEM NUT CARBON STEEL EN-8 3 GLAND NUT CARBON STEEL EN-8 4 GLAND PACKING TEFLON PTFE 5 STEM SEAL TEFLON PTFE 6 SEAT TEFLON PTFE 7 BALL SS ——– 8 BODY BRONZE BS:1400 LG2 9 STEM S.S. AISI-410 10 CONNECTOR BRONZE BS:1400 LG2 11 BOLT/NUT CARBON STEEL BS: 916 12 SEALING RUBBER NITRILE DIMENSIONS IN mm NOMINAL SIZE ∅A L H~ ∅F T D~ 15mm 13.5 83 74 95.3 6.4 110 20mm 17.5 95 74 101.6 6.4 110 25mm 23.5 105 80 114.3 8.0 132 32mm 29 120 100 120.7 8.0 152 40mm 38 125 110 133.4 9.6 170 50mm 48 157 125 152.4 9..6 210 *65mm 63 172 135 165.1 11.2 250 *80mm 77 210 145 184.2 13.0 327 *100mm 98 238 155 216 16.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 OR NPT TO ANSI B1.20.1 TESTING(HYD.) HYDRAULIC. BODY TEST PRESSURE :-710 psig SEAT TEST PRESSURE:-300psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 LEVER SS AISI 316 2 NUT SS AISI 316 3 GLAND NUT SS AISI 316 4 BODY SS ASTM 351, CF8M 5 BALL SS AISI 316 6 SEAT TEFLON PTFE 7 SLEEVE PVC ———– 8 GLAND PACKING TEFLON PTFE 9 STEM SEAL TEFLON PTFE 10 STEM SS AISI 316 11 CONNECTOR SS ASTM 351, CF8M 12 CONNECTOR SEAL TEFLON PTFE DIMENSIONS IN mm NOMINAL SIZE ∅B L H D 15MM 1/2″BSP 60 54 100 20MM 3/4″ BSP 64 58 125 25MM 1″ BSP 80 60 125 32MM 1-1/4″BSP — — — 40MM 1-1/2″BBSP 95 90 165 50MM 2″BSP 112 96 190 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
