PRODUCT DETAILS BOLTED BONNET,OUTSIDE SCREW & YOKE TYPE,RISING STEM WITH BACK SEAT ARRANGEMENT,RENWABLE S.S./MONEL TRIM, WITH STRAIGHT INLET HAND WHEEL OPERATED END DETAILS FLANGED ENDS AS PER BS:10 TABLE ‘J’ WORKING PRESSURE TESTING 700 psig.(Hyd.) MATERIALS OF CONSTRUCTION S NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452 Gr220 4 STEM S.S. AISI-410 5 LOCKING SCREW CARBON STEEL BS:916 6 YOKE BUSH ALUMINIUM BRZ. BS:1400 AB1C 7 STUD & NUT CARBON STEEL BS:916 8 GLAND FLANGE CAST STEEL ASTM A216 Gr.WCB 9 GLAND S.S. AISI-410 10 BONNET CAST STEEL ASTM A216 Gr.WCB 11 GLAND PACKING GRAPHITED ASBESTOS … 12 STUDS & NUTS CARBON STEEL BS:916 13 BACK SEAT BUSH S.S. AISI-410 14 GASKET STEAM JOINTING … 15 DISC NUT S.S. AISI-410 16 DISC S.S. AISI-410 17 BODY SEAT RING S.S. AISI-410 18 GUIDE S.S. AISI-410 19 BODY CAST STEEL ASTM A216 Gr.WCB 20 CHECK VALVE DISC S.S. AISI-410 21 STUDS & NUTS CARBON STEEL BS:916 22 STRAIGHT INLET CAST STEEL ASTM A216 Gr.WCB DIMENSIONS IN mm NOMINAL SIZE ∅F L+1.5 T H1~ H2~ 25mm 120.6 100 13 220 155 40mm 133.3 105 16 240 185 50mm 139.7 110 16 260 190 65mm 165.1 125 20 280 195 80mm 368.3 145 20 320 240 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FLAP TYPE DOUBLE DISC , SPRING LOADED SWING TYPE CHECK VALVE BODY SEAT FACING NITRILE MOULDED LINER DISC SEAT FACING S.S./ SGI INTEGRAL FACE END DETAILS SUITABLE FOR INSERTION BETWEEN CLASS-150,BS-10 TABLE D/E , BS:4504,PN:10/16 FLANGES PRESSURE RATING PN-16 ( HYDRAULIC) TESTING (HYD.) BODY – 500 psig. SEAT – 250 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY CAST IRON BS:1452 Gr.220 2 DISC S.S./ S.G.I. AISI 304 / BS:2789 3 SEAT RING RUBBER NITRILE 4 SPRING S.S AISI 304 5 HINGE PIN S.S AISI 304 6 STOP PIN S.S AISI 304 7 BEARING TEFLON P.T.F.E. 8 PLUG/GRUB SCREW CARBON STEEL BS: 916 9 NAME PLATE ALUMINIUM … NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS SINGLE FLAP DISC , SWING TYPE CHECK VALVE BODY SEAT FACING NITRILE MOULDED LINER END DETAILS WAFER SHORT ENDS WITH INTEGRALLY MOULDED RUBBER GASKET. SUITABLE FOR INSERTION BETWEEN CLASS-150,BS-10 TABLE ‘D’ & ‘E’ ,BS:4504,PN-10/16 FLANGES. PRESSURE RATING PN-16 ( HYDRAULIC) TESTING (HYD.) BODY – 500 psig. SEAT – 250 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HOOK M.S. — 2 BODY S.G.I BS:2789 3 DISC S.G.I / S.S. BS:2789 / AISI 304 4 BODY SEAT RUBBER NITRILE 5 O RING RUBBER HIGH NITRILE 6 CSK BOLTS CARBON STEEL BS: 916 DIMENSIONS IN mm NOMINAL SIZE ∅A B+2 40mm 86 16 50mm 97 16 65mm 110 16 80mm 129 16 100mm 160 16 125mm 192 18 150mm 218 21 200mm 272 22 250mm 330 28 300mm 384 30 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS SCREWED ON COVER WITH RENEWABLE S.S. WORKING PARTS END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 TESTING (HYD.) BODY TEST PRESSURE :-500 psig. SEAT TEST PRESSURE :- 300psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 VALVE DISC S.S. AISI-410 3 BODY SEAT RING S.S. AISI-410 4 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 70 41 20mm 3/4”BSP 85 47 25mm 1”BSP 102 57 32mm 1.1/4”BSP 110 61.5 40mm 1.1/2”BSP 122 62.5 50mm 2”BSP 148 79.5 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS BOLTED COVER, RENEWABLE STAINLESS STEEL(AISI 410)TRIM. END DETAILS FLANGED TO BS:4504,PN-16 UPTO 150mm OF VALVE FLANGED TO BS:4504,PN-10 ABOVE 150mm OF VALVE WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS:5153 TESTING HYDRAULIC. TEST PRESSURE :- 26Bar (377psig.) For size up to 150mm TEST PRESSURE :- 16Bar (232 psig.) For size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST IRON BS:1452 GR.220 3 GASKET C.A.F. … 4 DISC STAINLESS STEEL AISI-410 5 BODY SEAT RING STAINLESS STEEL AISI-410 6 BODY CAST IRON BS:1452 GR.220 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H~ 15mm 15 45 95 14 2 130 70 20mm 20 58 105 16 2 150 70 25mm 25 68 115 16 2 160 80 32mm 32 78 140 18 2 180 95 40mm 40 88 150 18 3 200 100 50mm 50 102 165 20 3 230 108 65mm 65 122 185 20 3 290 130 80mm 80 138 200 22 3 310 144 100mm 100 158 220 24 3 350 158 125mm 125 188 250 26 3 480 218 150mm 150 212 285 26 3 480 218 200mm 200 268 340 26 3 600 260 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

SS 304 GATE VALVE AND GLOBE VALVE

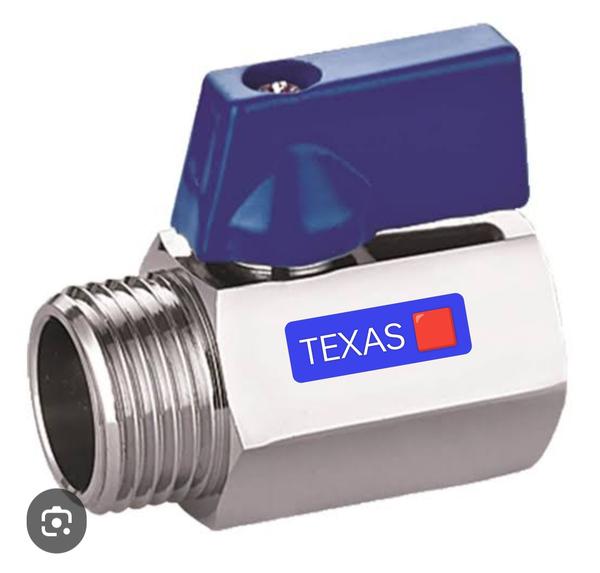

MINI BALL VALVE
