QINN BRONZE SIGHT GLASS FOR FIRE FIGHTING

PRODUCT DETAILS WITH TOUGHENED GLASS,SEALED WITH TWO SIDES BY GASKETS & SCREWED WITH RETAINER RING. END DETAILS SCREWED FEMALE BSP ENDS TO BS:21 TESTING 300 psig.(HYDRAULIC) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG 2 2 RING/RETAINER BRONZE BS:1400 LG 2 3 GLASS TOUGHENED GLASS —– 4 GASKETS CAF —– DIMENSIONS IN mm NOMINAL SIZE A ∅B L 15mm 1/2”BSP 15 88 20mm 3/4”BSP 20 90 25mm 1” BSP 25 95 32mm 1.1/4” BSP 32 108 40mm 1.1/2” BSP 40 113 50mm 2” BSP 48 115 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL FLOW, TOUGHENED GLASS SEALED WITH CAF GASKET FROM TWO SIDE AND SCREWED IN BRONZE RING. END DETAILS SCREWED FEMALE BSP TAPER THREADS TO BS:21 TESTING 34.5 Bar (HYDRAULIC) WORKING SUITABLE FOR STEAM LINES UP TO MAX. BOP 17.24

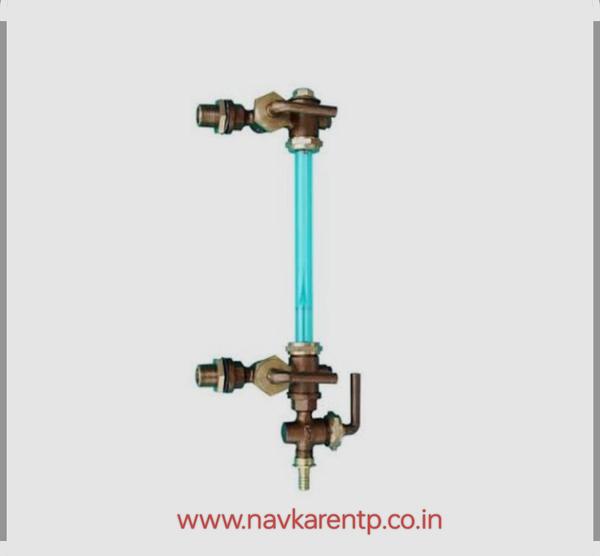

BRONZE GAUGE GLASS COCK

MS SIGHT GLASS BLUE AND RED POWDER COATED WITH 6" LENGTH TEXAS 🟥 MAKE

IC SIGHT GLASS CF8 & CF8M WITH 6" INCH LENGTH TEXAS 🟥

PRODUCT DETAILS FULL FLOW, TOUGHENED GLASS SEALED WITH CAF GASKET FROM TWO SIDE AND SCREWED IN BRONZE RING. END DETAILS SCREWED FEMALE BSP TAPER THREADS TO BS:21 TESTING 34.5 Bar (HYDRAULIC) WORKING SUITABLE FOR STEAM LINES UP TO MAX. BOP 17.24

QINN MAKE SS SIGHT GLASS WITH BRASS BALL VALVE... MAJORITY USED IN ALL MAJOR PROJECTS THROUGHOUT INDIA... AVAILABLE READY STOCK AT NAVKAR ENTERPRISES...

Qinn SS 304 Sight Glass is Approved in various projects all over india...Ready availability
