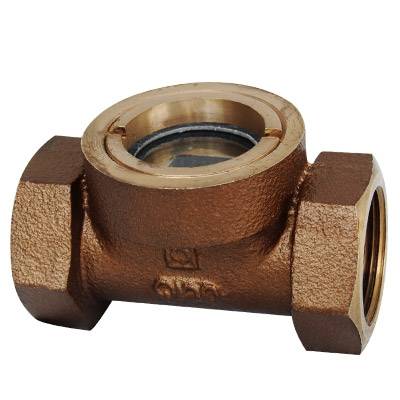

Q-16 – Qinn BRONZE SIGHT GLASS

PRODUCT DETAILS

WITH TOUGHENED GLASS,SEALED WITH

TWO SIDES BY GASKETS & SCREWED WITH RETAINER RING.

END DETAILS

SCREWED FEMALE BSP ENDS TO BS:21

TESTING

300 psig.(HYDRAULIC)

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY BRONZE BS:1400 LG 2

2 RING/RETAINER BRONZE BS:1400 LG 2

3 GLASS TOUGHENED GLASS —–

4 GASKETS CAF —–

DIMENSIONS IN mm

NOMINAL SIZE A ∅B L

15mm 1/2”BSP 15 88

20mm 3/4”BSP 20 90

25mm 1” BSP 25 95

32mm 1.1/4” BSP 32 108

40mm 1.1/2” BSP 40 113

50mm 2” BSP 48 115

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
