PRODUCT DETAILS RIGHT ANGLE PATTERN, SCREWED IN BONNET, OUT SIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS (BOLTED BONNET FOR SIZE 40mm & 50mm) END DETAILS FLANGED ENDS TO BS:10 TABLE ‘H’ TESTING 500 psig. (HYDRAULIC) WORKING PRESSURE SUITABLE FOR STEAM LINE UP TO 250psig.(17.58 kg/cm) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS … 8 BODY BRONZE BS:1400 LG2 9 DISC S.S. AISI-410 10 BODY SEAT RING S.S. AISI-410 11 STUDS & NUTS CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B ∅D T L H~ ∅W 15mm 12.7 114.3 10.0 73.0 105.0 90.0 20mm 19.0 114.3 10.0 76.0 105.0 95.0 25mm 25.0 120.6 12.0 83.0 120.0 102.0 32mm 32.0 133.3 12.0 89.0 138.0 127.0 40mm 38.0 139.7 12.0 95.0 153.0 127.0 50mm 50.0 165.1 13.0 108.0 175.0 150.0 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS RIGHT ANGLE PATTERN, SCREWED IN BONNET, OUTSIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS (BOLTED BONNET FOR 40mm & 50mm) END DETAILS SCREWED FEMALE BSP TAPER THREADS TO BS:21 TESTING HYDRAULIC BODY TEST PRESSURE :- 500 psig.(35.1kg/cm²) SUITABLE FOR STEAM LINE UP TO 250 psig (17.58kg/cm²) MAX. WORKING TEMP. 437 (225ºC) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT & STUD CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS —– 8 BODY BRONZE BS:1400 LG2 9 DISC S.S. AISI 410 10 BODY SEAT RING S.S. AISI 410 DIMENSIONS IN mm NOMINAL SIZE ∅B H~ L+1 ∅W 15mm 1/2″BSPT 105 41 70 20mm 3/4″BSPT 105 48 80 25mm 1″BSPT 120 57 95 32mm 1.1/4″BSPT 138 67 110 40mm 1.1/2″BSPT 153 76 127 50mm 2″BSPT 175 89 152 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS SCREWED IN BONNET, RENEWABLE- BRONZE SEAT & RING, SOFT SEATING AND SUITABLE FOR HIGH PRESSURE IN PETROL INDUSTRY. END DETAILS SCREWED BSP FEMALE AS BS:21 TESTING (HYD.) HYDRAULIC BODY TESTED:- 500 psig. SEAT TESTED:- 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS style=”color:#c41e02;”SPECIFICATIONS 1 BONNET CAST IRON BS:1452 Gr.220 2 GASKET C.A.F. … 3 BODY CAST IRON BS:1452 Gr.220 4 SEAT BRONZE BS:1400 LG2 5 SEAT FACING RUBBER NITRILE 6 BODY RING BRONZE BS:1400 LG2 7 SPLIT PIN BRASS BS:2872 CZ114 8 WASHER ALLUMINIUM … 9 NUT BRASS BS:2872 CZ114 DIMENSIONS IN mm NOMINAL SIZE ∅ A B~ C~ 40mm 1/2”BSP 78 76 70 50mm 2”BSP 80 88 76 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED COVER, RENEWABLE STAINLESS STEEL TRIM. END DETAILS FLANGED TO DIN 2533 RF, PN16 FOR SIZE UP TO 150mm FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS:5153 TESTING HYDRAULIC. TEST PRESSURE:- 26Bar (377 psig. hyd.) For size up to 150mm TEST PRESSURE:- 16Bar ( 232 psig. hyd. ) For size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 STUDS AND NUTS CARBON STEEL BS: 916 2 COVER CAST IRON BS:1452 GR.220 3 GASKET C.A.F. … 4 DISC STAINLESS STEEL AISI-410 5 BODY SEAT RING STAINLESS STEEL AISI-410 6 BODY CAST IRON BS:1452 GR.220 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H~ 15mm 15 45 95 14 2 90 60 20mm 20 58 105 16 2 95 60 25mm 25 68 115 16 2 100 68 32mm 32 78 140 18 2 105 70 40mm 40 88 150 18 3 115 75 50mm 50 102 165 20 3 125 80 65mm 65 122 185 20 3 145 96 80mm 80 138 200 22 3 155 102 100mm 100 158 220 24 3 175 112 125mm 125 188 250 26 3 200 128 150mm 150 212 285 26 3 225 148 200mm 200 268 340 26 3 275 178 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

PRODUCT DETAILS ANGLE TYPE WITH SS(AISI-410)/ MONEL SEAT AND SS STEM. END DETAILS INLET-FLANGED TO BS:10 TABLE ‘F’ OUTLET-FLANGED TO BS:10 TABLE ‘D’ WORKING MAX BOP 150psig AND MAX WORKING TEMP 220° C TESTING (HYD.) 370 Psig. HYDRAULIC. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 CAP C.I. BS:1452 Gr220 2 COTTER BRONZE BS:1400 LG2 3 LEVER C.I. BS:1452 Gr220 4 LOCKING NUT BRONZE BS:1400 LG2 5 COVER C.I. BS:1452 Gr220 6 BUSH BRONZE BS:1400 LG2 7 ADJUSTING SCREW BRONZE BS:1400 LG2 8 UPPER SPRING DISC C.I. BS:1452 Gr220 9 SPRING CHAMBER C.I. BS:1452 Gr220 10 STEM S.S. AISI-410 11 LOWER SPRING DISC C.I. BS:1452 Gr220 12 BUSH BRONZE BS:1400 LG2 13 GASKET CAF —————- 14 SPRING SPRING STEEL BS: 1726 EN47 15 GASKET CAF —————- 16 DISC S.S. AISI-410 17 DISC NUT BRONZE BS:1400 LG2 18 SCREW AND NUT BRASS BS: 2874 CZ114 19 BODY SEAT RING S.S. AISI-410 20 BODY C.I. BS:1452 Gr220 21 REGULATING RING BRONZE BS:1400 LG2 22 BOLTS AND NUTS CARBON STEEL BS:936 23 STUDS AND NUTS CARBON STEEL BS:936 DIMENSIONS IN mm NOMINAL SIZE ∅A B T ∅D L H~ 25MM 25 108 12.7 120.6 89 455 40MM 38 120.6 15.8 139.7 101.6 525 50MM 50 137.5 137.5 165.1 120.6 580 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

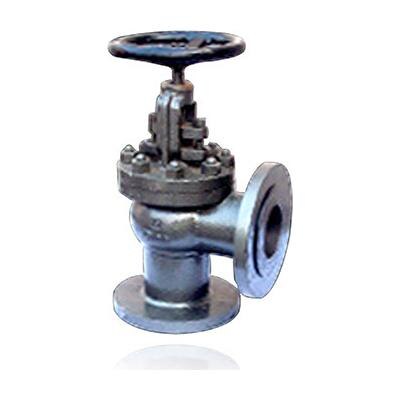

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE STAINLESS STEEL(AISI 410)TRIM, HAND OPERATED. END DETAILS LANGED ENDS AS PER BS:4504 PN-40 WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL CONFORMNG TO BS-5160/DIN2401 TESTING HYDRAULIC. BODY TESTED :- 76bar (1100psig. hyd.) SEAT TESTED :- 38bar ( 550 psig. hyd. ) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS: 916 2 WASHER CARBON STEEL —– 3 HAND WHEEL CAST STEEL BS: 1452 Gr200 4 STEM STAINLESS STEEL AISI-410 5 BONNET CAST STEEL ASTM A216 Gr.WCB 6 GLAND STAINLESS STEEL AISI-410 7 PACKING ASBESTOS GRAPHITED 8 GASKET SPIRAL WOUND ASBESTORS FILLES SS AISI-304 9 DISC NUT STAINLESS STEEL AISI-410 10 DISC STAINLES STEEL AISI-410 11 BODY CAST STEEL ASTM A216 GR.WCB 12 BODY SEAT RING STAINLES STEEL AISI-410 13 YOKE BUSH ALUMINIUM BRONZE BS:1400 AB1C 14 STUD BOLTS & NUTS CARBON STEEL BS:916 15 BACK SEAT BUSH STAINLES STEEL AISI-410 16 GLAND FLANGED CAST STEEL ASTM A216 Gr.WCB DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L H ∅W 15mm 15 45 95 16 2 90 202 130 20mm 20 58 105 18 2 90 202 140 25mm 25 68 115 18 2 100 215 140 32mm 32 78 140 18 2 105 230 160 40mm 40 88 150 18 3 115 245 180 50mm 50 102 165 20 3 125 260 200 65mm 65 122 185 22 3 145 315 215 80mm 80 138 200 24 3 155 330 250 100mm 100 162 235 24 3 175 365 300 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

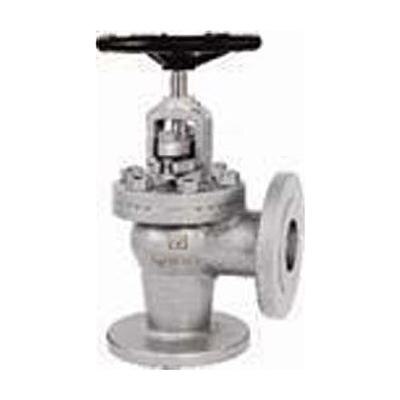

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE SS(AISI410) WORKING PARTS, HAND WHEEL OPERATED TO RIGHT ANGLED BODY END DETAILS FLANGED TO BS:4504,PN-16 UPTO 150mm OF VALVE FLANGED TO BS:4504,PN-10 ABOVE 150mm OF VALVE WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN16/10, CONFORMING TO BS:5152, MAX. WORKING TEMP. TESTING HYDRAULIC. TEST PRESSURE :- 26bar (377psig. hyd.) for size uoto 150mm TEST PRESSURE :- 16bar (232 psig. hyd.) for size above 150mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HAND WHEEL CAST IRON BS:1452 Gr.220 2 STEM STAINLESS STEEL AISI-410 3 BONNET CAST IRON BS:1452 Gr.220 4 GLAND CAST IRON BS:1452 Gr.220 5 GLAND PACKING ASBESTOS GRAPHITED —– 6 GASKET C.A.F. —– 7 SEAT NUT BRONZE BS:1400 LG2 8 SEAT STAINLESS STEEL AISI-410 9 BODY RING STAINLESS STEEL AISI-410 10 BODY CAST IRON BS:1452 Gr.220 11 NUT CARBON STEEL BS:916 12 WASHER CARBON STEEL —– 13 LOCKING SCREW CARBON STEEL BS:916 14 YOKE BUSH ALUMINUM BRONZE BS:1400 AB1C 15 STUDS & NUTS CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H ∅W~ 15mm 15 45 95 14 2 90 150 100 20mm 20 58 105 16 2 95 150 100 25mm 25 68 115 16 2 100 155 100 32mm 32 78 140 18 2 105 185 125 40mm 40 88 150 18 3 115 190 160 50mm 50 102 165 20 3 125 198 160 65mm 65 122 185 20 3 145 242 200 80mm 80 138 200 22 3 155 265 200 100mm 100 158 220 24 3 175 305 250 125mm 125 188 250 26 3 200 370 250 150mm 150 212 285 26 3 225 430 310 200mm 200 268 340 26 3 275 485 400 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTIC

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE SS(AISI 410) WORKING PARTS, HAND WHEEL OPERATED. END DETAILS FLANGED TO DIN 2533 RF, PN16 FOR SIZE UPTO 150mm. FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm. WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS-5152, MAX. WORKING TEMP.220ºC(428ºF) TESTING HYDRAULIC. TEST PRESSURE :- 26bar (377psig. hyd.) for size up to 150mm TEST PRESSURE :- 16bar (232 psig. hyd.) for size 200mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HAND WHEEL CAST IRON BS:1452 Gr.220 2 STEM STAINLESS STEEL AISI-410 3 BONNET CAST IRON BS:1452 Gr.220 4 GLAND CAST IRON BS:1452 Gr.220 5 GLAND PACKING ASBESTOS GRAPHITED —– 6 GASKET C.A.F. —– 7 SEAT NUT BRONZE BS:1400 LG2 8 SEAT STAINLESS STEEL AISI-410 9 BODY RING STAINLESS STEEL AISI-410 10 BODY CAST IRON BS:1452 Gr.220 11 NUT CARBON STEEL BS:916 12 WASHER CARBON STEEL —– 13 LOCKING SCREW CARBON STEEL BS:916 14 YOKE BUSH ALUMINUM BRONZE BS:1400 AB1C 15 STUDS & NUTS CARBON STEEL BS:916

PRODUCT DETAILS STRAIGHT PATTERN, SCREWED IN BONNET, OUT SIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS (BOLTED BONNET FOR SIZE 40mm & 50mm) END DETAILS FLANGED ENDS TO BS:10 TABLE ‘H’ TESTING 500 psig. (HYDRAULIC) WORKING PRESSURE SUITABLE FOR STEAM LINE UP TO 250psig.(17.58 kg/cm) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS … 8 GASKET STEAM JOINTING … 9 BODY BRONZE BS:1400 LG2 10 DISC S.S. AISI-410 11 BODY SEAT RING S.S. AISI-410 12 STUDS & NUTS CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B ∅D T L H~ ∅W 15mm 12.7 114.3 10.0 102.0 115.0 90.0 20mm 19.0 114.3 10.0 114.0 115.0 95.0 25mm 25.0 120.6 12.0 127.0 138.0 102.0 32mm 32.0 133.3 12.0 140.0 160.0 127.0 40mm 38.0 139.7 12.0 152.0 170.0 127.0 50mm 50.0 165.1 13.0 178.0 195.0 150.0 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE
