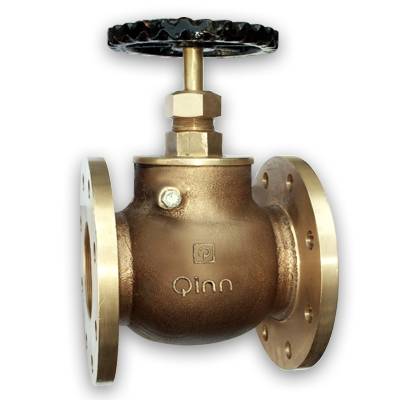

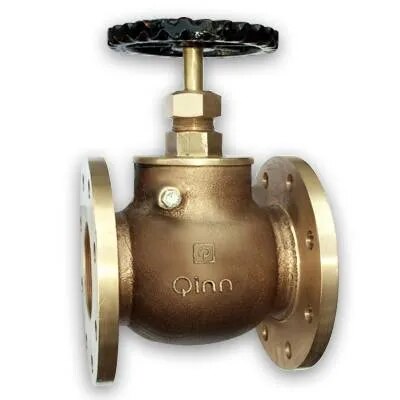

Q-85 – Qinn BRONZE STROM VALVE – STRAIGHT TYPE

PRODUCT DETAILS

SCREWED IN BONNET, INSIDE SCREW, RISING STEM HAVING INTEGRAL SEAT & SOFT SEATING, HAND WHEEL OPERATING.

END DETAILS

FLANGED ENDS TO BS:4504,PN-10

TESTING

HYDRAULIC

BODY TEST PRESSURE :- 300 psig

SEAT TEST PRESSURE :- 200 psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS: 916

2 WASHER CARBON STEEL —–

3 HAND WHEEL C.I. BS:1452 Gr.220

4 STEM BRASS BS:2874 CZ114

5 GLAND NUT BRONZE BS:1400 LG2

6 GLAND BRONZE BS:1400 LG2

7 PACKING ASBESTOS —–

8 BONNET BRONZE BS:1400 LG2

9 DISC NUT BRASS BS:2874 CZ114

10 DISC FACING RUBBER NITRILE

11 DISC BRONZE BS:1400 LG2

12 BODY BRONZE BS:1400 LG2

13 HINGE PIN BRASS BS:2874 CZ114

14 LEVER BRONZE BS:1400 LG2

DIMENSIONS IN mm

NOMINAL SIZE ∅D ∅B L (+1.5) T H~ W~

15mm 95 14 56 6.30 76 55

20mm 105 19 69 6.30 83 60

25mm 115 23 85 8.00 96 75

32mm 140 130 90 8.00 112 85

40mm 150 38 100 9.50 125 100

50mm 165 47 109 9.50 134 100

65mm 185 65 140 11.2000 190 125

80mm 200 76 170 12.70 190 125

100mm 220 100 200 15.80 225 160

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
