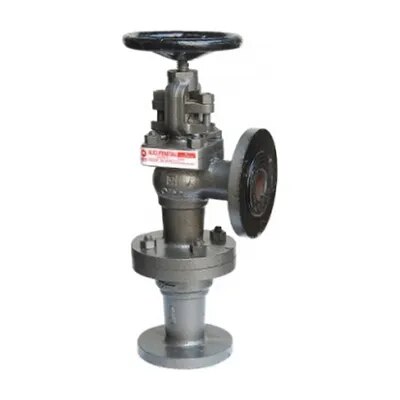

Q-206 – Qinn CAST IRON ACCESSIBLE FEED CHECK VALVE WITHOUT INSPECTION BRANCH
In stock
Description
PRODUCT DETAILS
BONNET,OUTSIDE SCREW & YOKE TYPE, RISING STEM, STRAIGHT INLET, RENEWABLE TRIMS, BACKSEAT ARRANGEMENT WITH HANDWHEEL OPERATED.
END DETAILS
FLANGED ENDS AS PER BS:10 TABLE ‘F’
WORKING PRESSURE
SUITABLE MAX. BOP 150 psig.MAX.WORKING
TESTING
300 psig. (Hyd).
DIMENSIONS IN mm
NOMINAL SIZE ∅A ∅B L+1 T H1~ H2~
25mm 25 122 100 13 220 155
32mm 32 134 105 16 240 185
40mm 40 140 110 16 260 190
50mm 50 165 125 20 280 195
65mm 65 184 145 20 310 240
