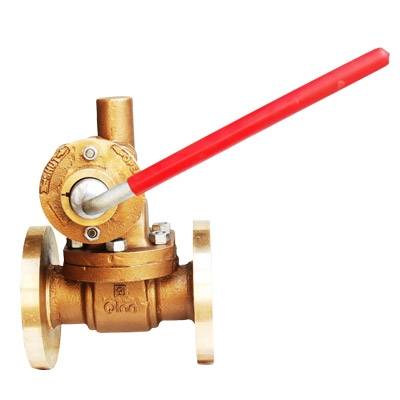

Q-116 – Qinn BRONZE PARALLEL SLIDE BLOW OFF VALVE

PRODUCT DETAILS

RACK & PINION OPERATED WITH RENEWABLE SS WORKING PARTS AND TIGHT SHUT OFF TYPE.

END DETAILS

FLANGED ENDS TO BS-10 TABLE ‘H’

WORKING

SUITABLE FOR STEAM UP TO 250 Psig.

TESTING

500 psig.HYDRAULIC.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BONNET BRONZE BS:1400,LG2

2 RACK BRONZE BS:1400,LG2

3 STUDS & NUTS CARBON STEEL BS: 916

4 BODY BRONZE BS:1400,LG2

5 GASKET CAF STEAM JOINT

6 BODY SEAT RING S.S. AISI-410

7 MALE DISC S.S. AISI-410

8 FEMALE DISC S.S. AISI-410

9 SPRING S.S. AISI-304

10 PINION BRONZE BS:1400,LG2

11 GLAND BRONZE BS:1400,LG2

12 PACKING CAF STEAM JOINT

13 STUFFING BOX BRONZE BS:1400,LG2

DIMENSIONS IN mm

NOMINAL SIZE NB D L+1.5 T H

25mm 25 121 169 14 150

40mm 38 140 190 18 205

50mm 46 165 206 20 206

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
