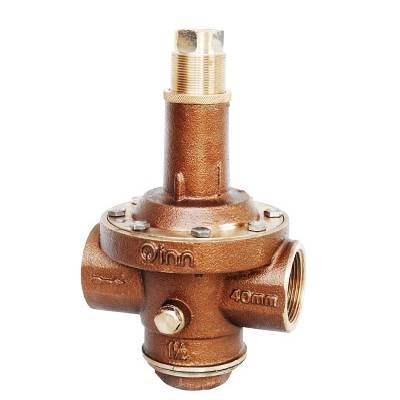

Q-100 – Qinn BRONZE PRESSURE REDUCING VALVE

PRODUCT DETAILS

SELF ACTING SPRING OPERATED PRESSURE REDUCING VALVE, THE DOWN PRESSURE IS ACTUATED BY THE SPRING FORCE ACTING ON DIAPHRAGM

END DETAILS

SCREWED FEMALE TO BS:21

TESTING (Hyd.)

BODY :- 18 BAR

SEAT :- 16 BAR

REDUCING PRESSURE RANGE

0.8 BAR TO 8 BAR

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 ADJUSTING SCREW BRONZE BS:1400 LG2

2 CHECK NUT BRONZE BS:1400 LG2

3 SPRING SPRING STEEL BS:1726 (EN-47)

4 BODY BRONZE BS:1400 LG2

5 DIAPHRAGM DISC BRONZE BS:1400 LG2

6 RUBBER DIAPHRAGM RUBBER NITRILE

7 SPRING CHAMBER BRONZE BS:1400 LG2

8 STEM BRONZE BS:1400 LG2

9 SEAT HOLDER CAP BRONZE BS:1400 LG2

10 SEAT RUBBER NITRILE

11 SEAT RETAINER BRONZE BS:1400 LG2

12 BOTTOM PLUG BRONZE BS:1400 LG2

13 SEAT RETAINER CAP BRONZE BS:1400 LG2

14 GASKETS C.A.F —–

DIMENSIONS IN mm

NOMINAL SIZE A B C D

15mm 68 77 54 131

20mm 77 90 66 156

25mm 91 120 72 192

32mm 106 120 76 196

40mm 137 152 78 230

50mm 170 180 90 270

65mm 200 225 120 345

80mm 204 240 130 370

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
